1. Essential Structure and Material Composition
1.1 The Nanoscale Design of Aerogels

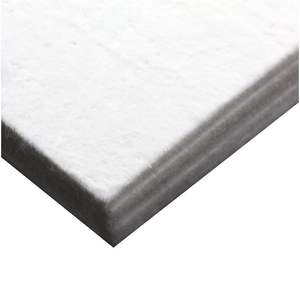

(Aerogel Blanket)
Aerogel blankets are advanced thermal insulation materials built upon a special nanostructured structure, where a solid silica or polymer network covers an ultra-high porosity quantity– generally surpassing 90% air.
This structure stems from the sol-gel procedure, in which a fluid forerunner (often tetramethyl orthosilicate or TMOS) undergoes hydrolysis and polycondensation to create a wet gel, complied with by supercritical or ambient pressure drying out to get rid of the liquid without breaking down the delicate porous network.
The resulting aerogel includes interconnected nanoparticles (3– 5 nm in diameter) forming pores on the range of 10– 50 nm, little enough to reduce air particle movement and thus decrease conductive and convective heat transfer.
This sensation, referred to as Knudsen diffusion, dramatically decreases the efficient thermal conductivity of the product, commonly to worths between 0.012 and 0.018 W/(m · K) at room temperature level– among the most affordable of any type of solid insulator.
Despite their low thickness (as low as 0.003 g/cm THREE), pure aerogels are naturally weak, requiring reinforcement for practical usage in versatile blanket type.
1.2 Support and Composite Design
To get over frailty, aerogel powders or pillars are mechanically integrated into fibrous substratums such as glass fiber, polyester, or aramid felts, creating a composite “blanket” that keeps outstanding insulation while obtaining mechanical effectiveness.
The reinforcing matrix supplies tensile strength, flexibility, and managing sturdiness, making it possible for the material to be reduced, curved, and installed in complicated geometries without significant performance loss.
Fiber web content generally ranges from 5% to 20% by weight, very carefully stabilized to lessen thermal bridging– where fibers conduct warmth throughout the covering– while making certain architectural integrity.
Some progressed layouts incorporate hydrophobic surface area therapies (e.g., trimethylsilyl teams) to prevent wetness absorption, which can weaken insulation performance and promote microbial growth.
These modifications enable aerogel blankets to preserve stable thermal properties also in humid environments, expanding their applicability beyond regulated laboratory problems.
2. Production Processes and Scalability

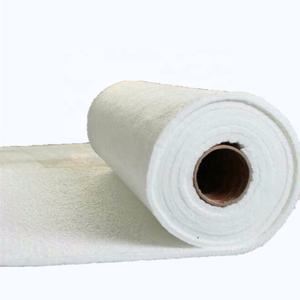

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Manufacturing
The production of aerogel blankets starts with the development of a wet gel within a fibrous floor covering, either by fertilizing the substratum with a fluid forerunner or by co-forming the gel and fiber network concurrently.
After gelation, the solvent need to be gotten rid of under problems that prevent capillary tension from falling down the nanopores; historically, this called for supercritical CO â‚‚ drying out, a pricey and energy-intensive process.
Recent breakthroughs have actually made it possible for ambient pressure drying out through surface area adjustment and solvent exchange, dramatically minimizing production expenses and allowing continual roll-to-roll production.
In this scalable procedure, lengthy rolls of fiber floor covering are constantly covered with forerunner remedy, gelled, dried, and surface-treated, enabling high-volume result suitable for industrial applications.
This shift has been essential in transitioning aerogel coverings from specific niche lab products to readily feasible items utilized in construction, power, and transportation sectors.
2.2 Quality Control and Efficiency Uniformity
Ensuring consistent pore structure, consistent thickness, and dependable thermal efficiency across large manufacturing sets is crucial for real-world release.
Manufacturers use strenuous quality assurance procedures, consisting of laser scanning for thickness variation, infrared thermography for thermal mapping, and gravimetric evaluation for moisture resistance.
Batch-to-batch reproducibility is vital, specifically in aerospace and oil & gas industries, where failing as a result of insulation breakdown can have severe consequences.
Furthermore, standardized testing according to ASTM C177 (warm circulation meter) or ISO 9288 makes sure exact reporting of thermal conductivity and enables fair contrast with typical insulators like mineral wool or foam.
3. Thermal and Multifunctional Feature
3.1 Superior Insulation Throughout Temperature Varies
Aerogel coverings show superior thermal performance not only at ambient temperature levels yet also throughout extreme ranges– from cryogenic conditions below -100 ° C to heats going beyond 600 ° C, depending on the base product and fiber type.
At cryogenic temperatures, traditional foams might fracture or lose effectiveness, whereas aerogel coverings stay flexible and keep reduced thermal conductivity, making them ideal for LNG pipelines and tank.
In high-temperature applications, such as commercial heaters or exhaust systems, they give reliable insulation with minimized thickness contrasted to bulkier options, conserving area and weight.
Their reduced emissivity and capacity to mirror convected heat additionally improve performance in radiant barrier setups.
This large operational envelope makes aerogel coverings distinctively functional amongst thermal administration solutions.
3.2 Acoustic and Fire-Resistant Attributes
Past thermal insulation, aerogel coverings show noteworthy sound-dampening residential or commercial properties as a result of their open, tortuous pore structure that dissipates acoustic energy through viscous losses.
They are progressively made use of in auto and aerospace cabins to minimize environmental pollution without adding considerable mass.
Furthermore, most silica-based aerogel coverings are non-combustible, attaining Course A fire scores, and do not release poisonous fumes when exposed to flame– important for building security and public framework.
Their smoke density is exceptionally reduced, improving visibility during emergency situation evacuations.
4. Applications in Sector and Arising Technologies
4.1 Energy Effectiveness in Structure and Industrial Systems
Aerogel coverings are changing energy performance in architecture and commercial design by making it possible for thinner, higher-performance insulation layers.
In buildings, they are made use of in retrofitting historic frameworks where wall surface thickness can not be boosted, or in high-performance façades and windows to decrease thermal bridging.
In oil and gas, they shield pipelines bring warm fluids or cryogenic LNG, decreasing energy loss and stopping condensation or ice development.
Their lightweight nature also minimizes structural load, specifically useful in offshore platforms and mobile units.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel blankets shield spacecraft from severe temperature level fluctuations throughout re-entry and shield delicate tools from thermal cycling precede.
NASA has used them in Mars rovers and astronaut matches for easy thermal law.
Automotive suppliers incorporate aerogel insulation right into electric automobile battery loads to avoid thermal runaway and enhance safety and effectiveness.
Consumer items, including outdoor apparel, footwear, and outdoor camping equipment, now include aerogel linings for exceptional warmth without mass.
As manufacturing expenses decrease and sustainability boosts, aerogel coverings are positioned to come to be conventional remedies in global initiatives to reduce energy intake and carbon emissions.
To conclude, aerogel blankets stand for a merging of nanotechnology and functional engineering, providing unequaled thermal performance in a versatile, sturdy format.
Their capability to conserve energy, room, and weight while maintaining security and environmental compatibility settings them as essential enablers of lasting modern technology throughout varied sectors.
