1. Fundamental Make-up and Architectural Design of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Defining the Product Course

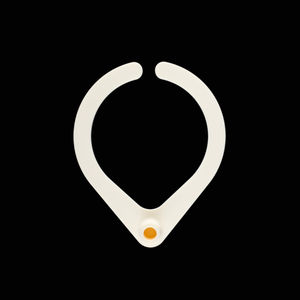

(Transparent Ceramics)
Quartz ceramics, also referred to as integrated quartz or fused silica ceramics, are advanced not natural products originated from high-purity crystalline quartz (SiO ₂) that undergo controlled melting and loan consolidation to form a dense, non-crystalline (amorphous) or partially crystalline ceramic structure.
Unlike conventional porcelains such as alumina or zirconia, which are polycrystalline and made up of several stages, quartz ceramics are mainly composed of silicon dioxide in a network of tetrahedrally worked with SiO ₄ systems, using exceptional chemical purity– typically exceeding 99.9% SiO ₂.
The difference between fused quartz and quartz ceramics hinges on handling: while fused quartz is usually a fully amorphous glass created by fast cooling of molten silica, quartz porcelains might include regulated formation (devitrification) or sintering of fine quartz powders to accomplish a fine-grained polycrystalline or glass-ceramic microstructure with improved mechanical toughness.
This hybrid method combines the thermal and chemical security of fused silica with improved crack sturdiness and dimensional security under mechanical tons.
1.2 Thermal and Chemical Security Mechanisms
The remarkable efficiency of quartz porcelains in extreme environments originates from the solid covalent Si– O bonds that create a three-dimensional connect with high bond power (~ 452 kJ/mol), conferring exceptional resistance to thermal degradation and chemical attack.
These materials display an extremely reduced coefficient of thermal expansion– approximately 0.55 × 10 ⁻⁶/ K over the variety 20– 300 ° C– making them highly resistant to thermal shock, a critical characteristic in applications involving fast temperature level biking.
They preserve architectural integrity from cryogenic temperature levels as much as 1200 ° C in air, and even higher in inert environments, prior to softening starts around 1600 ° C.
Quartz porcelains are inert to a lot of acids, consisting of hydrochloric, nitric, and sulfuric acids, because of the security of the SiO ₂ network, although they are at risk to attack by hydrofluoric acid and solid alkalis at elevated temperatures.
This chemical durability, incorporated with high electrical resistivity and ultraviolet (UV) transparency, makes them perfect for use in semiconductor processing, high-temperature heaters, and optical systems exposed to severe conditions.
2. Manufacturing Processes and Microstructural Control

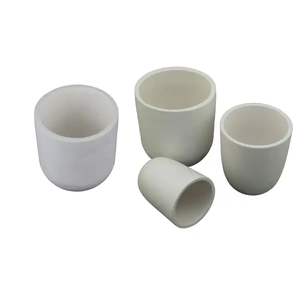

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The production of quartz porcelains entails innovative thermal processing strategies created to maintain purity while achieving desired thickness and microstructure.
One common approach is electrical arc melting of high-purity quartz sand, adhered to by regulated air conditioning to create merged quartz ingots, which can after that be machined right into elements.
For sintered quartz ceramics, submicron quartz powders are compressed by means of isostatic pressing and sintered at temperature levels between 1100 ° C and 1400 ° C, commonly with very little ingredients to advertise densification without causing extreme grain growth or phase change.
A crucial difficulty in handling is preventing devitrification– the spontaneous formation of metastable silica glass right into cristobalite or tridymite stages– which can endanger thermal shock resistance as a result of quantity adjustments during phase transitions.
Makers employ specific temperature level control, quick air conditioning cycles, and dopants such as boron or titanium to suppress undesirable condensation and preserve a steady amorphous or fine-grained microstructure.
2.2 Additive Production and Near-Net-Shape Fabrication
Current advancements in ceramic additive manufacturing (AM), specifically stereolithography (SLA) and binder jetting, have enabled the construction of complex quartz ceramic elements with high geometric accuracy.
In these processes, silica nanoparticles are put on hold in a photosensitive resin or uniquely bound layer-by-layer, complied with by debinding and high-temperature sintering to achieve complete densification.
This approach reduces material waste and permits the development of intricate geometries– such as fluidic channels, optical cavities, or warmth exchanger aspects– that are challenging or impossible to attain with traditional machining.
Post-processing techniques, including chemical vapor infiltration (CVI) or sol-gel finish, are in some cases related to seal surface area porosity and boost mechanical and ecological resilience.
These technologies are expanding the application range of quartz porcelains into micro-electromechanical systems (MEMS), lab-on-a-chip gadgets, and tailored high-temperature fixtures.
3. Functional Characteristics and Performance in Extreme Environments
3.1 Optical Openness and Dielectric Actions
Quartz ceramics show special optical buildings, including high transmission in the ultraviolet, noticeable, and near-infrared range (from ~ 180 nm to 2500 nm), making them essential in UV lithography, laser systems, and space-based optics.
This transparency occurs from the absence of digital bandgap changes in the UV-visible array and marginal spreading due to homogeneity and reduced porosity.
Additionally, they have exceptional dielectric buildings, with a reduced dielectric constant (~ 3.8 at 1 MHz) and marginal dielectric loss, enabling their usage as shielding elements in high-frequency and high-power digital systems, such as radar waveguides and plasma activators.
Their capability to keep electrical insulation at raised temperatures better enhances dependability popular electrical environments.
3.2 Mechanical Behavior and Long-Term Durability
Regardless of their high brittleness– a common trait among porcelains– quartz porcelains show good mechanical strength (flexural toughness approximately 100 MPa) and superb creep resistance at heats.
Their hardness (around 5.5– 6.5 on the Mohs range) supplies resistance to surface abrasion, although care has to be taken throughout managing to stay clear of breaking or split proliferation from surface defects.
Environmental toughness is one more key benefit: quartz porcelains do not outgas substantially in vacuum, resist radiation damage, and maintain dimensional stability over extended exposure to thermal cycling and chemical environments.
This makes them recommended products in semiconductor construction chambers, aerospace sensing units, and nuclear instrumentation where contamination and failure must be minimized.
4. Industrial, Scientific, and Emerging Technical Applications
4.1 Semiconductor and Photovoltaic Production Systems
In the semiconductor sector, quartz porcelains are ubiquitous in wafer handling equipment, consisting of heater tubes, bell jars, susceptors, and shower heads utilized in chemical vapor deposition (CVD) and plasma etching.
Their pureness protects against metallic contamination of silicon wafers, while their thermal security guarantees uniform temperature level distribution throughout high-temperature processing actions.
In photovoltaic or pv production, quartz components are used in diffusion heating systems and annealing systems for solar battery production, where regular thermal accounts and chemical inertness are essential for high return and performance.
The need for larger wafers and greater throughput has actually driven the growth of ultra-large quartz ceramic frameworks with enhanced homogeneity and minimized defect thickness.
4.2 Aerospace, Protection, and Quantum Modern Technology Integration
Past industrial processing, quartz ceramics are utilized in aerospace applications such as rocket assistance windows, infrared domes, and re-entry lorry elements as a result of their capability to withstand severe thermal gradients and aerodynamic tension.
In protection systems, their transparency to radar and microwave regularities makes them ideal for radomes and sensing unit housings.
More recently, quartz porcelains have actually located roles in quantum technologies, where ultra-low thermal growth and high vacuum cleaner compatibility are required for accuracy optical tooth cavities, atomic traps, and superconducting qubit enclosures.
Their capability to lessen thermal drift guarantees long comprehensibility times and high measurement accuracy in quantum computing and noticing systems.
In summary, quartz ceramics stand for a course of high-performance materials that link the void between traditional ceramics and specialty glasses.
Their unmatched combination of thermal stability, chemical inertness, optical openness, and electric insulation makes it possible for innovations running at the limits of temperature, purity, and precision.
As making methods evolve and require expands for materials efficient in holding up against increasingly extreme problems, quartz ceramics will continue to play a foundational duty in advancing semiconductor, power, aerospace, and quantum systems.
