1. Material Features and Architectural Style
1.1 Composition and Crystalline Phases of Alumina

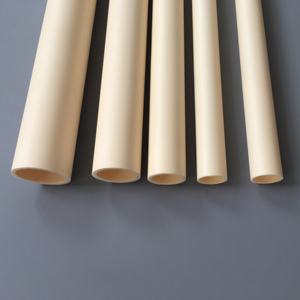

( Alumina Ceramic Tubes)
Alumina (Al Two O ₃) ceramic tubes are mostly fabricated from high-purity aluminum oxide, with purity degrees usually varying from 90% to 99.8%, depending upon the intended application.
The leading crystalline stage in completely thick, high-temperature sintered tubes is α-alumina (diamond), which exhibits a trigonal crystal framework and outstanding thermodynamic stability.
This stage shift from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina happens above 1100 ° C and leads to a dense, interlacing microstructure that offers outstanding mechanical strength and chemical resistance.
Higher pureness grades (≥ 99.5%) make best use of hardness, put on resistance, and dielectric performance, while lower-purity formulas might include additional phases like mullite or glazed grain boundary stages to minimize cost or tailor thermal expansion.
The capacity to manage grain size, porosity, and stage structure throughout processing enables designers to fine-tune alumina tubes for details useful demands across diverse industrial domains.
1.2 Mechanical, Thermal, and Electrical Properties
Alumina ceramic tubes exhibit a distinct combination of physical residential properties that make them indispensable sought after engineering environments.
With a Vickers solidity exceeding 1500 HV, they are extremely immune to abrasion and erosion, outmatching most steels and polymers in wear-prone systems.
Their compressive strength can reach 2000 MPa, making it possible for architectural use under high mechanical loads, while flexural toughness usually ranges from 300 to 500 MPa, depending on thickness and surface coating.
Thermally, alumina keeps stability approximately 1700 ° C in oxidizing environments, with a low coefficient of thermal growth (~ 8 ppm/K), contributing to excellent thermal shock resistance when correctly created.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate compared to metals or light weight aluminum nitride, it suffices for numerous high-temperature applications where electric insulation and structural honesty are focused on.
Electrically, alumina is an outstanding insulator with quantity resistivity > 10 ¹⁴ Ω · centimeters and high dielectric toughness (> 15 kV/mm), making it perfect for electric feedthroughs, sensing unit real estates, and high-voltage insulation.

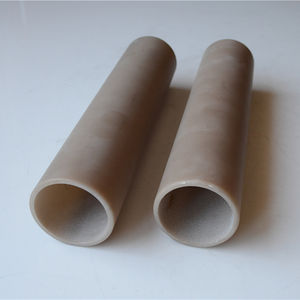

( Alumina Ceramic Tubes)
2. Manufacturing Processes and Dimensional Control
2.1 Forming and Creating Methods
The production of alumina ceramic tubes involves advanced developing techniques customized to accomplish precise measurements, wall surface density uniformity, and surface high quality.
Common methods consist of extrusion, isostatic pushing, and slide spreading, each fit to various dimension ranges and efficiency demands.
Extrusion is commonly utilized for long, straight tubes with constant cross-sections, where a plasticized alumina paste is required with a die and cut to size prior to drying out and sintering.
For high-precision or thin-walled tubes, chilly isostatic pushing (CIP) applies consistent stress from all instructions to compact eco-friendly bodies, decreasing distortion and improving thickness homogeneity.
Slide casting, entailing the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold and mildew, is perfect for facility or large-diameter geometries with variable wall surface thickness.
After forming, tubes go through cautious drying out to avoid fracturing, complied with by binder fatigue and high-temperature sintering (1500– 1650 ° C )to achieve full densification and dimensional stability.
2.2 Ending Up and Quality Control
Post-sintering operations such as centerless grinding, splashing, and brightening are utilized to achieve limited resistances, smooth surface area coatings, and accurate inner and outer diameters.
Resistances as tight as ± 0.01 mm are attainable for crucial applications in semiconductor handling or analytical instrumentation.
Surface area roughness can be minimized to Ra < 0.1 µm, lessening bit trapping and enhancing compatibility with ultra-high vacuum (UHV) or cleanroom atmospheres.
Non-destructive screening techniques– consisting of ultrasonic examination, X-ray radiography, and color penetrant screening– ensure architectural honesty and absence of fractures or voids.
Dimensional assessment utilizing coordinate determining devices (CMM) or laser scanning confirms conformity with style requirements, particularly for custom or high-volume manufacturing runs.
3. Useful Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Deterioration
Among one of the most compelling advantages of alumina ceramic tubes is their ability to stand up to extreme thermal and chemical conditions where metals and polymers fall short.
They stay dimensionally secure and mechanically durable in constant service at temperatures over 1500 ° C, making them suitable for heating system liners, thermocouple security sheaths, and radiant heater tubes.
Their inertness to molten metals (e.g., light weight aluminum, zinc, and non-ferrous alloys), molten salts, and lots of acids (other than hydrofluoric and hot phosphoric acid) makes it possible for usage in metallurgical and chemical processing equipment.
In oxidizing and lowering environments, alumina does not degrade or militarize undesirable reactions, protecting process purity in semiconductor and glass manufacturing.
This chemical inertness additionally avoids contamination in high-purity fluid managing systems, including those utilized in pharmaceutical and food handling markets.
3.2 Electric Insulation and Plasma Resistance
In electric and plasma settings, alumina tubes work as protecting barriers that maintain circuit stability under high voltage and raised temperature level.
They are made use of in high-intensity discharge (HID) lights, where they consist of ionized gases at temperatures exceeding 1000 ° C while standing up to electrical possibilities of a number of kilovolts.
In plasma etching and deposition systems, alumina tubes serve as dielectric home windows or gas distribution components, resisting ion barrage and thermal cycling without breaking or outgassing.
Their reduced dielectric loss and high arc resistance stop electrical monitoring and breakdown, guaranteeing lengthy life span in switchgear and power transmission parts.
These properties are essential in preserving procedure stability and equipment dependability in innovative manufacturing and power systems.
4. Industrial and Emerging Applications
4.1 High-Temperature and Commercial Processing Systems
Alumina ceramic tubes are essential to a large range of commercial processes that demand durability under extreme conditions.
In thermal handling, they serve as protective sheaths for thermocouples and burner in kilns, heaters, and heat therapy tools, shielding sensitive elements from destructive environments and mechanical wear.
In fluid handling, they move aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock permits quick heating and cooling cycles without failure, a vital advantage in cyclic industrial operations.
In glass manufacturing, alumina tubes assist molten glass circulations and support forming devices, standing up to erosion from viscous, high-temperature thaws.
4.2 Advanced Technologies and Future Combination
Beyond traditional industrial uses, alumina tubes are locating new duties in advanced technologies.
In semiconductor fabrication, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) reactors and ion implantation systems, where fragment generation and metallic contamination have to be lessened.
In clinical tools, biocompatible alumina tubes work as protecting components in surgical tools, dental implants, and diagnostic sensors.
Research is checking out functionalized alumina tubes with embedded sensors or conductive traces for clever architectural surveillance in aerospace and energy systems.
Additive manufacturing (3D printing) of alumina is becoming a method to create complex tube geometries with internal networks or rated make-ups, allowing next-generation warm exchangers and microreactors.
As industries push towards higher efficiency, cleaner procedures, and better dependability, alumina ceramic tubes continue to evolve as making it possible for parts in the framework of modern-day innovation.
In summary, alumina ceramic tubes stand for a mature yet dynamically advancing course of crafted materials, integrating extraordinary thermal, mechanical, and electric performance in a single not natural avenue.
Their flexibility throughout severe environments ensures their ongoing importance in both developed industrial systems and arising modern applications.
