Introduction to Light Weight Aluminum Nitride Ceramics
Aluminum nitride (AlN) is a high-performance ceramic material that has gotten extensive acknowledgment for its remarkable thermal conductivity, electrical insulation, and mechanical security at raised temperatures. With a hexagonal wurtzite crystal structure, AlN displays an unique combination of buildings that make it one of the most suitable substrate product for applications in electronic devices, optoelectronics, power components, and high-temperature environments. Its capability to effectively dissipate warmth while preserving exceptional dielectric toughness positions AlN as a remarkable option to traditional ceramic substratums such as alumina and beryllium oxide. This article checks out the essential attributes of light weight aluminum nitride ceramics, looks into construction strategies, and highlights its critical duties throughout innovative technological domains.

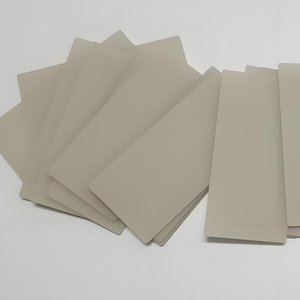

(Aluminum Nitride Ceramics)
Crystal Framework and Essential Quality
The efficiency of light weight aluminum nitride as a substrate material is greatly determined by its crystalline framework and intrinsic physical homes. AlN takes on a wurtzite-type lattice made up of rotating aluminum and nitrogen atoms, which contributes to its high thermal conductivity– generally exceeding 180 W/(m · K), with some high-purity samples achieving over 320 W/(m · K). This worth substantially goes beyond those of various other extensively utilized ceramic materials, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal efficiency, AlN has a broad bandgap of about 6.2 eV, causing superb electric insulation residential or commercial properties even at heats. It additionally demonstrates low thermal expansion (CTE ≈ 4.5 × 10 ⁻⁶/ K), which carefully matches that of silicon and gallium arsenide, making it an optimum match for semiconductor device product packaging. In addition, AlN displays high chemical inertness and resistance to molten metals, improving its suitability for extreme settings. These consolidated features establish AlN as a top candidate for high-power electronic substratums and thermally handled systems.
Manufacture and Sintering Technologies
Making top quality light weight aluminum nitride porcelains needs accurate powder synthesis and sintering strategies to attain dense microstructures with very little contaminations. As a result of its covalent bonding nature, AlN does not conveniently compress with conventional pressureless sintering. As a result, sintering aids such as yttrium oxide (Y ₂ O SIX), calcium oxide (CaO), or uncommon planet components are typically contributed to advertise liquid-phase sintering and improve grain boundary diffusion.
The construction process generally starts with the carbothermal decrease of aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are after that crushed, shaped using approaches like tape casting or injection molding, and sintered at temperatures in between 1700 ° C and 1900 ° C under a nitrogen-rich environment. Hot pushing or trigger plasma sintering (SPS) can further enhance density and thermal conductivity by reducing porosity and advertising grain positioning. Advanced additive production techniques are additionally being discovered to fabricate complex-shaped AlN elements with tailored thermal monitoring capacities.
Application in Digital Product Packaging and Power Modules
Among one of the most noticeable uses aluminum nitride porcelains remains in electronic product packaging, particularly for high-power gadgets such as insulated gate bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power densities boost in modern-day electronic devices, efficient heat dissipation becomes vital to guarantee integrity and longevity. AlN substrates give an optimum service by combining high thermal conductivity with outstanding electrical seclusion, stopping brief circuits and thermal runaway conditions.
In addition, AlN-based direct bound copper (DBC) and energetic metal brazed (AMB) substrates are increasingly used in power component layouts for electric cars, renewable energy inverters, and commercial electric motor drives. Compared to traditional alumina or silicon nitride substratums, AlN offers quicker warm transfer and better compatibility with silicon chip coefficients of thermal expansion, consequently minimizing mechanical stress and anxiety and enhancing general system performance. Ongoing study intends to boost the bonding strength and metallization methods on AlN surfaces to further broaden its application range.
Use in Optoelectronic and High-Temperature Tools
Beyond digital product packaging, aluminum nitride porcelains play an essential role in optoelectronic and high-temperature applications as a result of their openness to ultraviolet (UV) radiation and thermal security. AlN is widely used as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications needing sanitation, picking up, and optical communication. Its large bandgap and low absorption coefficient in the UV variety make it an ideal candidate for sustaining aluminum gallium nitride (AlGaN)-based heterostructures.
In addition, AlN’s capacity to function accurately at temperature levels exceeding 1000 ° C makes it ideal for usage in sensing units, thermoelectric generators, and parts revealed to severe thermal lots. In aerospace and protection industries, AlN-based sensing unit bundles are utilized in jet engine tracking systems and high-temperature control units where traditional products would fall short. Constant improvements in thin-film deposition and epitaxial growth strategies are expanding the potential of AlN in next-generation optoelectronic and high-temperature incorporated systems.
( Aluminum Nitride Ceramics)
Ecological Security and Long-Term Integrity
A key consideration for any type of substrate product is its lasting reliability under operational stress and anxieties. Aluminum nitride demonstrates superior environmental stability contrasted to many various other porcelains. It is extremely immune to deterioration from acids, antacid, and molten steels, making certain longevity in hostile chemical environments. Nonetheless, AlN is prone to hydrolysis when exposed to dampness at elevated temperatures, which can deteriorate its surface area and decrease thermal efficiency.
To mitigate this problem, protective coatings such as silicon nitride (Si three N ₄), light weight aluminum oxide, or polymer-based encapsulation layers are often put on enhance moisture resistance. Furthermore, careful sealing and packaging approaches are carried out during device setting up to keep the honesty of AlN substrates throughout their service life. As environmental regulations end up being much more stringent, the non-toxic nature of AlN additionally positions it as a preferred option to beryllium oxide, which postures health risks throughout handling and disposal.
Conclusion
Light weight aluminum nitride ceramics stand for a class of advanced products distinctly matched to attend to the growing demands for efficient thermal management and electric insulation in high-performance digital and optoelectronic systems. Their outstanding thermal conductivity, chemical security, and compatibility with semiconductor technologies make them one of the most perfect substratum material for a vast array of applications– from vehicle power modules to deep UV LEDs and high-temperature sensing units. As manufacture technologies continue to evolve and economical manufacturing approaches develop, the fostering of AlN substratums is expected to climb significantly, driving development in next-generation digital and photonic gadgets.
