1. Material Basics and Crystal Chemistry
1.1 Structure and Polymorphic Structure
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its remarkable hardness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks differing in piling series– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most highly pertinent.
The solid directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) lead to a high melting point (~ 2700 ° C), reduced thermal growth (~ 4.0 × 10 ⁻⁶/ K), and exceptional resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC lacks a native glazed phase, adding to its security in oxidizing and harsh ambiences up to 1600 ° C.
Its wide bandgap (2.3– 3.3 eV, depending upon polytype) additionally endows it with semiconductor residential properties, enabling dual usage in structural and electronic applications.
1.2 Sintering Challenges and Densification Approaches
Pure SiC is exceptionally tough to compress as a result of its covalent bonding and low self-diffusion coefficients, requiring making use of sintering help or sophisticated processing strategies.
Reaction-bonded SiC (RB-SiC) is generated by penetrating permeable carbon preforms with liquified silicon, developing SiC sitting; this approach yields near-net-shape parts with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) utilizes boron and carbon additives to advertise densification at ~ 2000– 2200 ° C under inert environment, achieving > 99% academic thickness and exceptional mechanical residential or commercial properties.
Liquid-phase sintered SiC (LPS-SiC) uses oxide ingredients such as Al ₂ O FOUR– Y ₂ O ₃, forming a transient liquid that improves diffusion however may reduce high-temperature stamina due to grain-boundary phases.
Warm pushing and stimulate plasma sintering (SPS) use fast, pressure-assisted densification with fine microstructures, perfect for high-performance elements requiring marginal grain growth.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Stamina, Firmness, and Put On Resistance
Silicon carbide porcelains exhibit Vickers hardness worths of 25– 30 GPa, second only to diamond and cubic boron nitride among design materials.
Their flexural strength normally ranges from 300 to 600 MPa, with fracture sturdiness (K_IC) of 3– 5 MPa · m ¹/ ²– moderate for ceramics however enhanced via microstructural design such as hair or fiber support.
The combination of high solidity and flexible modulus (~ 410 GPa) makes SiC extremely immune to rough and abrasive wear, outmatching tungsten carbide and hardened steel in slurry and particle-laden settings.
( Silicon Carbide Ceramics)
In commercial applications such as pump seals, nozzles, and grinding media, SiC elements show life span a number of times longer than conventional alternatives.
Its reduced thickness (~ 3.1 g/cm FIVE) additional adds to wear resistance by lowering inertial forces in high-speed rotating parts.
2.2 Thermal Conductivity and Stability
Among SiC’s most distinguishing features is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline types, and up to 490 W/(m · K) for single-crystal 4H-SiC– going beyond most steels other than copper and aluminum.
This residential property enables reliable warmth dissipation in high-power electronic substratums, brake discs, and warm exchanger components.
Coupled with low thermal development, SiC shows impressive thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high worths suggest durability to rapid temperature level changes.

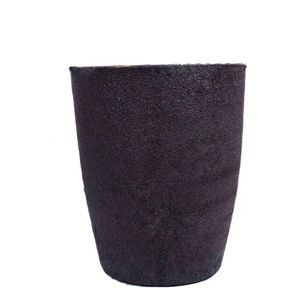

As an example, SiC crucibles can be warmed from area temperature level to 1400 ° C in minutes without breaking, a feat unattainable for alumina or zirconia in similar problems.
In addition, SiC keeps stamina up to 1400 ° C in inert atmospheres, making it perfect for heater components, kiln furnishings, and aerospace parts exposed to severe thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Habits in Oxidizing and Minimizing Atmospheres
At temperature levels listed below 800 ° C, SiC is extremely stable in both oxidizing and reducing atmospheres.
Over 800 ° C in air, a safety silica (SiO ₂) layer types on the surface area by means of oxidation (SiC + 3/2 O ₂ → SiO TWO + CO), which passivates the material and slows additional destruction.
However, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)₄, causing accelerated recession– an important factor to consider in wind turbine and burning applications.
In reducing ambiences or inert gases, SiC stays stable as much as its decay temperature level (~ 2700 ° C), with no stage changes or toughness loss.
This stability makes it suitable for liquified metal handling, such as aluminum or zinc crucibles, where it withstands moistening and chemical assault far better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is basically inert to all acids except hydrofluoric acid (HF) and strong oxidizing acid blends (e.g., HF– HNO SIX).
It shows excellent resistance to alkalis approximately 800 ° C, though long term direct exposure to molten NaOH or KOH can trigger surface area etching via development of soluble silicates.
In molten salt settings– such as those in focused solar power (CSP) or nuclear reactors– SiC demonstrates superior rust resistance compared to nickel-based superalloys.
This chemical toughness underpins its use in chemical procedure devices, including shutoffs, linings, and warm exchanger tubes handling hostile media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Arising Frontiers
4.1 Established Utilizes in Power, Protection, and Manufacturing
Silicon carbide ceramics are integral to many high-value industrial systems.
In the power industry, they serve as wear-resistant liners in coal gasifiers, components in nuclear gas cladding (SiC/SiC composites), and substratums for high-temperature solid oxide fuel cells (SOFCs).
Protection applications consist of ballistic shield plates, where SiC’s high hardness-to-density proportion gives remarkable security versus high-velocity projectiles contrasted to alumina or boron carbide at lower cost.
In production, SiC is used for precision bearings, semiconductor wafer managing components, and rough blasting nozzles because of its dimensional stability and pureness.
Its use in electric car (EV) inverters as a semiconductor substratum is quickly growing, driven by effectiveness gains from wide-bandgap electronics.
4.2 Next-Generation Developments and Sustainability
Recurring research study concentrates on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which show pseudo-ductile behavior, boosted sturdiness, and kept strength over 1200 ° C– perfect for jet engines and hypersonic automobile leading edges.
Additive production of SiC via binder jetting or stereolithography is progressing, enabling complex geometries formerly unattainable with traditional creating methods.
From a sustainability viewpoint, SiC’s durability minimizes replacement frequency and lifecycle emissions in commercial systems.
Recycling of SiC scrap from wafer slicing or grinding is being developed with thermal and chemical recuperation processes to reclaim high-purity SiC powder.
As sectors push towards greater efficiency, electrification, and extreme-environment operation, silicon carbide-based ceramics will stay at the leading edge of sophisticated products design, bridging the space between architectural durability and useful versatility.
